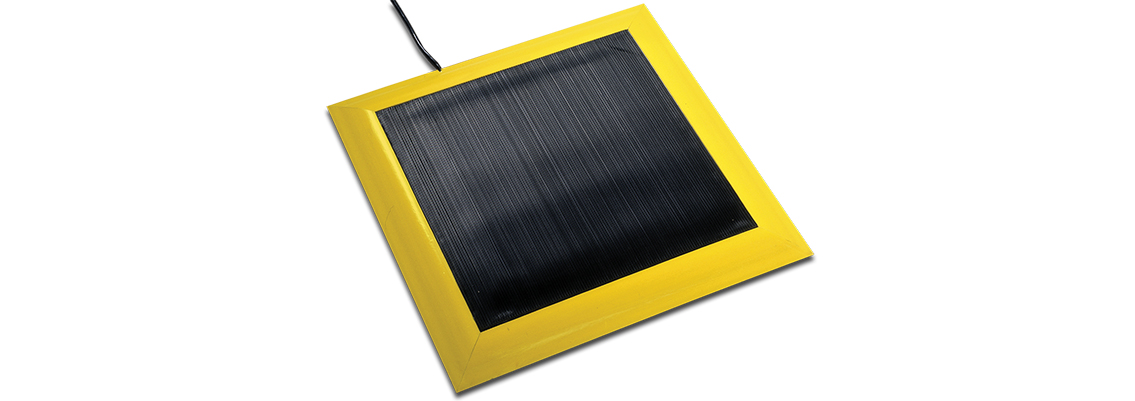

Comfort Zone Safety Mat



Tapeswitch™ Comfort Zone Anti-Fatigue Safety mats are the only industrial safety mats that combine the safety of a pressure-sensitive switch mat with the comfort of an ergonomically-designed anti-fatigue mat. This unique product is intended for safety applications in which an operator must stand on a safety mat frequently or for extended periods during long machine cycle times.

Comfort Zone Anti-Fatigue Safety Mats meld parallel-plate switching technology with premier Comfort King™ Zedland™ Vinyl Foam to create a unique dual-purpose sensing mat. A highly-visible yellow ramped edge greatly reduces any trip hazard, while providing out-of-the-box service.

All Comfort Zone Safety Mats are supplied with 4-conductor Fail-Safe wiring, and are compatible with Tapeswitch™ Safety Interface Modules.

Features
•   A unique combination of a safety mat and ergonomic comfort mat in one product
•   Integral safety-yellow ramped edge minimizes trip hazard
•   Built-in edging means out-of-the-box installation
•   Mats can be joined into multi-mat, large-area systems
•   4-conductor Fail-Safe wiring is standard



WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Actuation Force: 22 lbs (100 N) nominal
Recommended Voltage & Current: 12 to 48 VAC or VDC at 50 mA min. to 1.0 amp max.
Environment: IP65 rated, 0 to 122°F (-18 to 50°C)
Switch Life: 1 million operations at any point
Lead: 10 FT Standard
Standard Sizes: 24 in. x 36 in. (610 mm x 910 mm)
24 in. x 48 in. (610 mm x 1220 mm)
24 in. x 60 in. (610 mm x 1520 mm)
24 in. x 72 in. (610 mm x 1830 mm)
36 in. x 48 in. (910 mm x 1220 mm)
36 in. x 60 in. (910 mm x 1520 mm)
36 in. x 72 in. (910 mm x 1830 mm)
Custom sizes are also available
