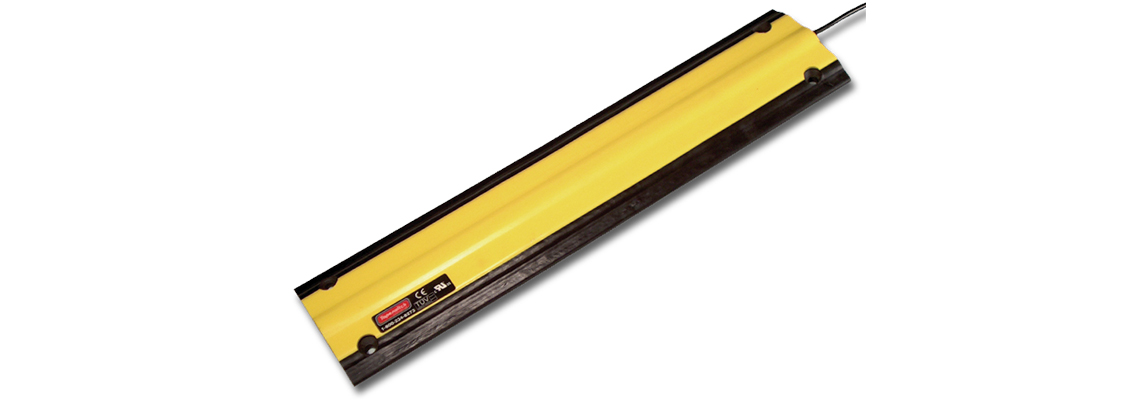

Non-Corroding Vehicle Sensing Switch



This extremely rugged and durable vehicle detection sensor provides a contact closure when depressed at any point. The flexible housing makes it suitable for contoured or irregular surfaces.

When floor-mounted, non-corroding vehicle sensing switch can perform as a vehicle counting or detection device. When wall or dock-mounted, it can signal vehicle contact. The double-sealed switch assembly ensures superior weather resistance and long life.

Features
•   Rugged and corrosion-proof for long life
•   Flexible housing mounts on irregular surfaces
•   Double-sealed for weather-resistance and high reliability
•   Available in lengths from 1 to 16 feet

Applications
•   Vehicle/axle detection or counting
•   Vehicle positioning in service centers



WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Actuation Force: 20 lbs (90 N) nominal
Recommended Voltage & Current 24 VAC or VDC at 1.0 amps max
Material: Extruded PVC, UV stabilized
Colors: Black with yellow
Available Sizes: Custom sizes from 1 to 16 ft. (0.3 to 4.9 M)
