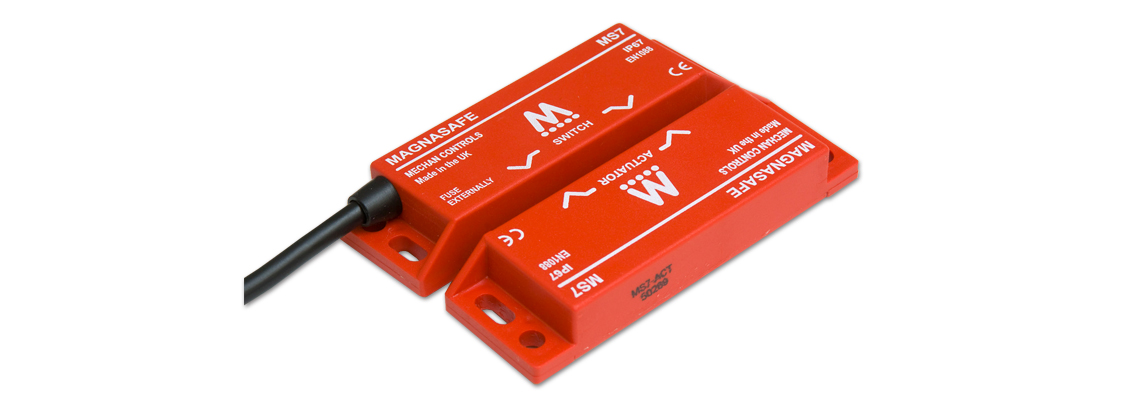

The new MS7 adds an additional level of security. The coded magnetic operation of the MS7 is even more robust and secure for non-contact safety switch applications. Fully sealed to IP67, and with a good 10mm switching distance the MS7 is easy to install and ideal for food processing / packaging applications.
Features
• Tamper Resistant Coded Magnet
• 2 x N/C + 1 x N/O
• 10 mm Operating distance
• 300 mA Switching
• UL Approval
| Operation: | Coded Magnetic |
| Contacts: | 2 Normally Open + 1 Normally Closed |
| Operating Distance: | 7 mm ON, 12 mm OFF |
| Contact Rating: | 300 mA, 24 VDC |
| Operating Temperature: | -10 to 55°C |
| Construction: | Red ABS, Resin filled |
| IP Rating: | IP67 |
| Cable Lengths / Connector: | 3 and 6 M, Longer to order |
| Features: | Tamper resistant, coded magnet technology Suitable for wet / washdown areas Dual contacts with indication |
| Approvals: | UL 508 Industrial Control Equipment, CE |
