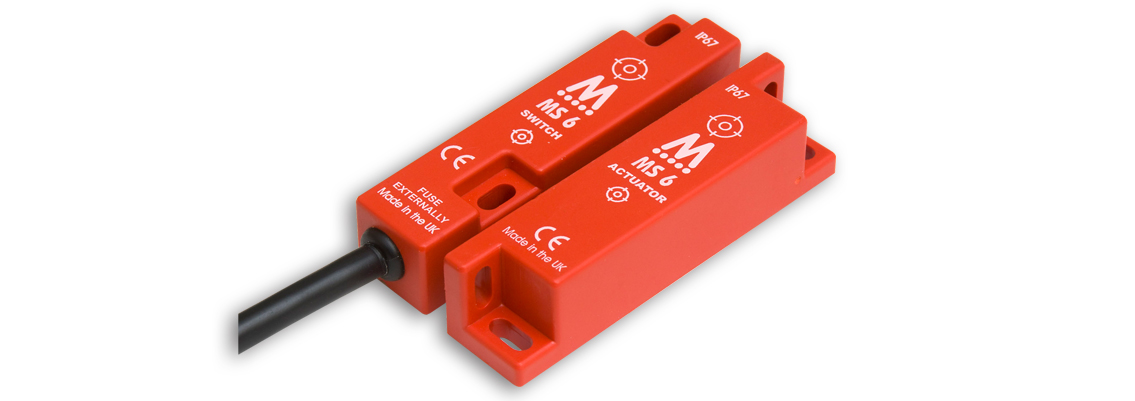

The MS6 is our new SLIM-LINE IP67 safety switch. With up to 2 safety contacts and 1 indicator contact in a small footprint, and capable of switching most safety relays, the MS6 is ideal for non-contact safety applications.
Available in both AC or DC switching versions, the MS6 is easy to integrate and being non-contact it has no mechanical parts to wear or break, and will provide a long term reliable solution to safety switch problems.
Features
• Slim Line non-contact safety switch
• Magnetic non-contact safety switches
• UL Approved
• Up to 2 x Safety contacts
• Optional 1 x Auxiliary (indicator) contact
• AC or DC switching
• Up to 2 amps switching
| Operation: | Magnetic |
| Contacts: | Max. 2 Safety, 1 Auxiliary |
| Contact Options: | MS6-21 2 N/O 1 N/C, MS6-20 2 N/O, MS6-11 1 N/O 1 N/C, MS6 1 N/O |
| Operating Distance: | 10 mm ON, 30 mm OFF |
| Safety Contact Rating: | AC = 2 amps, DC = 1 amp |
| Operating Temperature: | -10 to 55°C |
| Construction: | ABS or 316 Grade Stainless Steel, Resin filled |
| IP Rating: | IP67 |
| Mounting: | Target to Target |
| Cable Lengths / Connector: | Standard: 3 and 6 M, Longer available to order Quick Dsiconnect: M12, 3, 4 or 6 Pole (Dependant on contacts) |
| Features: | Suitable for wet / washdown areas Non-contact safety switching, tolerant to misalignment |
| Approvals: | UL 508 Industrial Control Equipment, CE |
