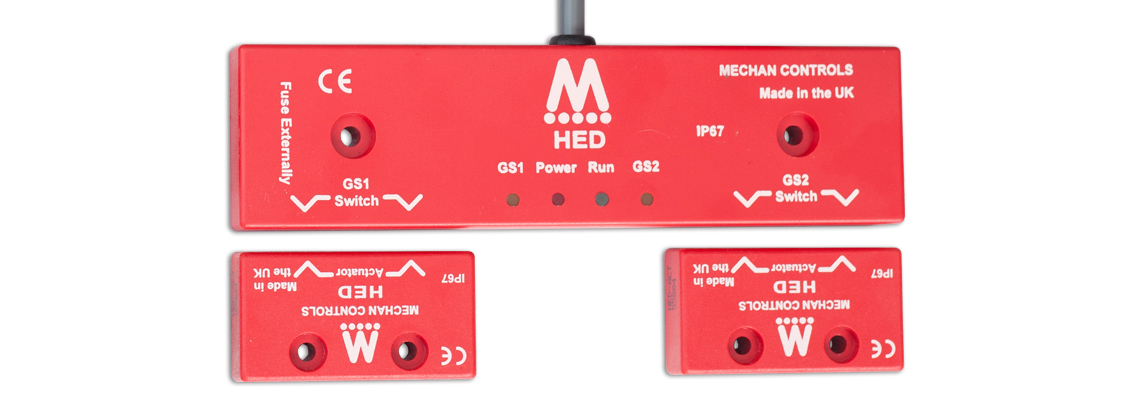

HE-D Double Switch The HE-D is the double switch, which reduces the amount of wiring for multiple gates and reduces the brackets needed for mounting the switches. The HE-D Switch has three options for cable exit to ensure easy installation.
| Operation: | Coded Non-contact |
| Contact Arrangements: | 2 x N/O + 1 x N/C |
| Safety Contact Operating Distance: | 7 mm ON / 12 mm OFF |
| Safety Contact Rating: | DC: 24 Vdc / 400 mA |
| Auxiliary Contact Rating: | DC: 24 Vdc / 400 mA |
| External Fusing ( When not using SCU-1 ): | 400 mA |
| IP Rating: | IP67 |
| Cable Length: | 100 Meters max |
| Operating temperature: | -25°C to +55°C |
| Storage temperature: | -25°C to +55°C |
| Mounting: | Target to target |
| Construction: | Red ABS Resin Filled or 316 Grade Stainless Steel resin Filled |
