Mat Edge Styles And Optional Aluminum Edging

Tapeswitch™ safety mats are supplied with a choice of edge styles and do not require additional edging in many applications. In some cases, however, aluminum edging may be used to secure the safety mat to the floor, provide a wire chase for the leads, or to add a safety-yellow edge marking

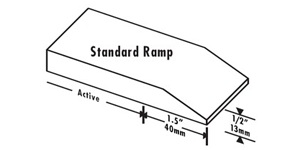

Ramp Edge • Bevel is cut in mat edge • Provides a smooth transition between floor and mat • Minimizes any trip hazard • Suitable for single safety mat installations where permanently affixing the mat is not required.

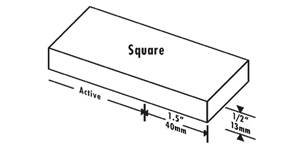

Square Edge • Mat edge is squared off • Used in multiple-mat systems • Used with aluminum edging • Suitable when a safety mat is abutted to a machine or wall

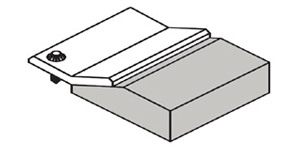

Aluminum Edging Type AE-1 • One-piece, angled extrusion • Provdes smooth transition from floor to mat • Simplest method to secure the mat to the floor • Can be used with either square or ramped edges

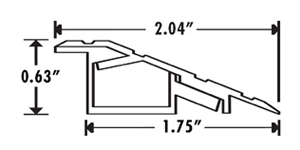

Aluminum Edging Type AE-2 • Heavy-duty, two-piece extrusion • Secures mat to floor • Provides built-in wire chase • For use with square-edge safety mats only

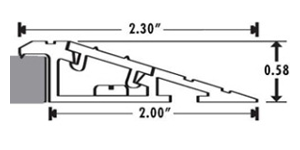

Aluminum Edging Type AE-3 • Heavy-duty extrusion with yellow PVC cover • Snap-on corner pieces with lead exits • Secures mat to floor • Provides built-in wire chase • For use with square-edge safety mats only
