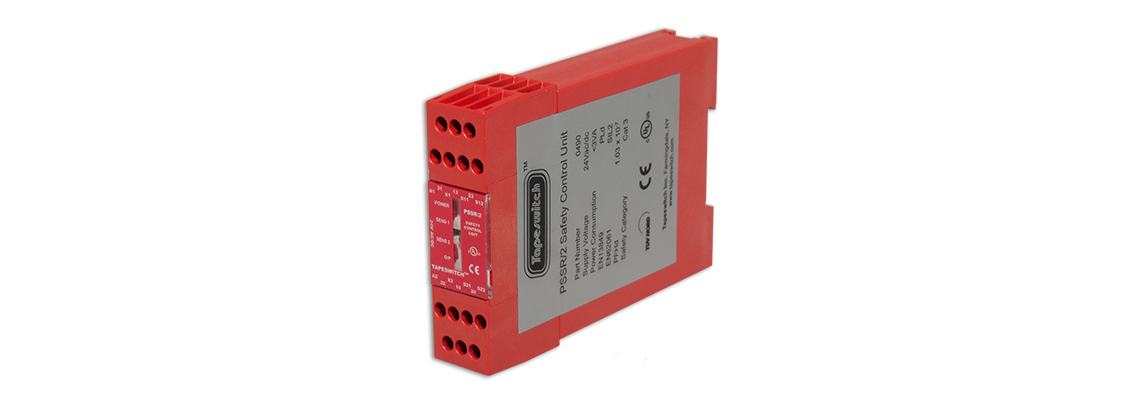

The PSSR/2 control unit is designed to be used in conjunction with Tapeswitch™ pressure sensitive sensor products to make a complete safety system. Sensors may take the form of safety mats, sensing edges, bumpers, or ribbon switches but must incorporate an integral end of the line resister.
When the PSSR/2 is used with suitable Tapeswitch™ sensing edges, bumpers, switches or mats the system meets the requirements of EN13849-1:2006 PLd, EN62061 SIL2 and is a Category 3 configuration. It is an extremely compact unit which has a 22.5 mm DIN rail enclosure ideal for mounting in control panels. The PSSR/2 has a manual or auto reset function and operates from 24 VDC.
Features:
• Works with all mats, edges, bumpers, and switches
• Category 3 PLd SIL2
• End of line resistor monitoring
• DIN rail mounted
• 24 VDC supply voltage
• Manual or auto reset
• Self-monitoring
• 3 Output contacts
| Safety Performance Level: | Category 3, PLd (EN13849-1:2008) | |
| Probability Of Dangerous Failures Per Hour (PFHd): | 1.03 x 10-7 | |
| Power Consumption: | < 5 VA | |
| Response Time: | 13 ms | |
| Temperature Range: | 14 to 131°F (-10 to 55°C) | |
| Reset Function: | Auto or Manual | |
| Supply Voltage: | 24 VAC or VDC | |
| Safety Outputs: | Device Type Contacts Rating |
Safety relay, Force guided relays 2 x N/O, 1 x N/C (monitor) 5 A @ 240 VAC |
| Maximum Sensor Length: | 100 M (330 ft.) | |
| Enclosure Protection Rating: | IP20 | |
| Dimensions: | 3.31 in. high x 4.68 in. length x .88 in. wide | |
