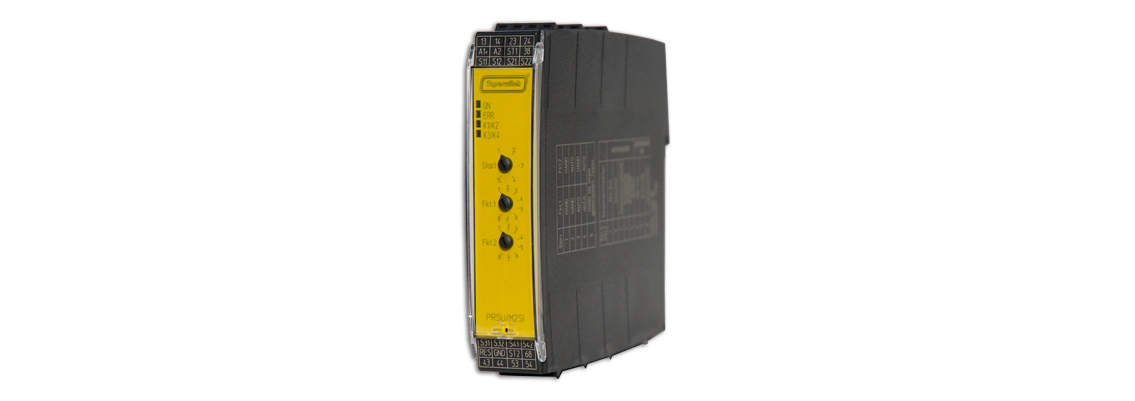

Features:
• According to
- Performance Level (PL) e and category 4 to EN ISO 13849-1: 2008
- SIL Claimed Level (SIL CL) 3 to IEC/EN 62061
- Safety Integrity Level (SIL) 3 to IEC/EN 61508 and IEC/EN 61511
• Acc. to EN 50156-1 for furnaces
• Line fault detection on On-button:
• Manual restart or automatic restart
• With or without cross fault monitoring
• 2-channel
• Forcibly guided output contacts
• Output: 2 NO contacts per safety function
• 1 semiconductor output per safety function
• LED indicator for operation, safety function 1, 2 and failure
• Removable terminal strips: plug in screw terminals
| Input | |
| Nominal voltage UN: | DC 24 V |
| Voltage range: | 0.8 ... 1.1 UN |
| Nominal consumption: | typ. 3.2 W |
| Short-circuit protection: | Internal PTC |
| Overvoltage protection: | Internal VDR |
| Duty-cycle ON button: | 0.1 s < tEIN < 3 s |
| Duty-cycle Reset button: | > 3 s |
| Safety function | |
| Safety mat / safety edge / Tapeswitch (4) | |
| max. permitted | |
| safety edge contact resistance: | 1000 Ω |
| switching current at short circuit: | typ. 15 mA at UN |
| Light curtains (8) | |
| control current via S12, S22 e.g. S32, S42: | typ. 8 mA at UN |
| Min. voltage on terminals S12, S22 e.g. S32, S42 when relay activated: | DC 10 V |
| Output | |
| Contacts | 2 NO contacts per safety function |
| The NO contacts can be used for safe braking. | |
| Thermal current Strom Ith: | max. 8 A |
| Safety function | |
| E-Stop (1) (6), Safety gate 2) (7), Exclusive or contacts (5) | |
| Start up at UN: | < 65 ms |
| Release delay at UN and disconnecting the supply: | < 40 ms |
| Release delay at UN and disconnecting S12,S22 or S32, S42: | < 60 ms& |
| Two-hand control (3) | |
| Start up at UN: | < 110 ms |
| Release delay at UN and disconnecting the supply: | < 40 ms |
| Release delay at UN and disconnecting S12,S22 or S32, S42: | < 60 ms |
| simultaneity demand: | max. 0,5 s |
| Safety mat (4) / Safety Edge / Tapeswitch | |
| Start up at UN: | < 85 ms |
| Release delay at UN and disconnecting the supply: | < 40 ms |
| Release delay at UN and disconnecting S12,S22 or S32, S42: | < 60 ms |
| Light curtains (8) | |
| Start up at UN: | < 35 ms |
| Release delay at UN and disconnecting the supply: | < 40 ms |
| Release delay at UN and disconnecting S12,S22 or S32, S42: | < 25 ms |
| Switching capacity | |
| to AC 15 | |
| NO contacts: | 2 A / DC 24 V IEC/EN 60 947-5-1 |
| to DC 13 | |
| NO contacts: | 2 A / DC 24 V IEC/EN 60 947-5-1 |
| Electrical life | |
| at 5 A, AC 230 V cos φ = 1: | > 1.5 x 10,5 switching cycles |
| Permissible operating frequency | |
| 1. safety function: | max. 1800 switching cycles / h |
| 2. safety function: | max. 360 switching cycles / h |
| Short circuit strength | |
| max. fuse rating: | 6 A gL IEC/EN 60 947-5-1 |
| Mechanical life: | 10 x 106 switching cycles |
| Semiconductor monitoring output | |
| (not safety): 1 per safety function | 1 per safety function max. 50 mA DC 24 V, plus switching |
| General Data | |
| Nominal operating mode: | continuous operation |
| Temperature range | |
| Operation: | - 15 ... + 55 °C |
| Storage: | - 25 ... + 85 °C |
| Altitude: | < 2.000 m |
| Clearance and creepage distance | |
| rated impuls voltage / pollution degree: | 4 kV / 2 IEC 60 664-1 |
| EMC | |
| Electrostatic discharge (ESD): | 8 kV (air) IEC/EN 61 000-4-2 |
| HF irradiation: | 10 V / m IEC/EN 61 000-4-3 |
| Fast transients: | 2 kV IEC/EN 61 000-4-4 |
| Surge voltage between wires for power supply: | 1 kV IEC/EN 61 000-4-5 |
| between wire and ground: | 2 kV IEC/EN 61 000-4-5 |
| HF-wire guided: | 10 V EN 61 000-4-6 |
| Interference suppression: | Limit value class B EN 55 011 |
| Degree of protection | |
| Housing: | IP 40 IEC/EN 60 529 |
| Terminals: | IP 20 IEC/EN 60 529 |
| Housing: | thermoplastic with VO behaviour according to UL subj. 94 |
| Vibration resistance: | Amplitude 0,35 mm Frequency 10 ... 55 Hz, IEC/EN 60 068-2-6 |
| Klimate resistance: | 15 / 055 / 04 IEC/EN 60 068-1 |
| Terminal designation: | EN 50 005 |
| Wire connection: | DIN 46 228-1/-2/-3/-4 |
| Wire fixing: | captive slotted screw |
| Mounting: | DIN rail IEC/EN 60 715 |
| Weight: | approx. 275 g |
