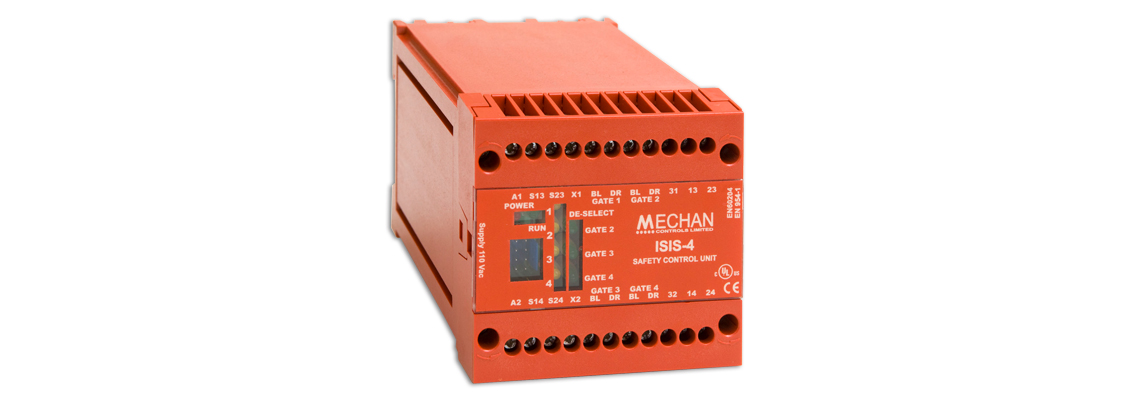

ISIS-4 Safety Control Unit



DIN Rail mounting housing provides 2 x safety and 1 x auxiliary output contacts (4A / 230VAC). Indicator LED's in the ISIS-4 lid show the number of gates that have been selected, gate status, power and run.

A DIP switch located beneath the lid is used to select the number of active safety switches (note: The selector switch and number of safety switches must match or the control unit will not operate.)

The coded magnetic safety switches provide a reliable, tamper resistant and cost effective method of monitoring machinery guarding where regular access is required.

Approved by TUV to Category 3, the ISIS safety system is suitable for many applications including packing machinery and food processing environments.


Control Category: EN 954 CAT 3, SIL 3, PL-e
Supply Voltage: 24 VAC/DC, 110 VAC, 230 VAC
Power Consumption: 6 VA
Output Contacts: 2 x N/O Safety Contacts 1 x N/C Auxilliary Contact
Safety Contact Switching: 4 A @ 230 VAC or 30 VDC
Safety Switch Inputs: 4, (use ISIS-E to add more inputs)
E-Stop Input: Dual Channel, Cross Monitored
Mounting: 35 mm DIN Rail
IP Rating: Housing IP40, Terminal IP20
Indication: Guard Selected and Status Indication. Auxilliary Output Contact
Features: E-Stop and Safety Switch control in one unit.
Approval: TUV Category 3, UL 508 Industrial Control Equipment, CE
